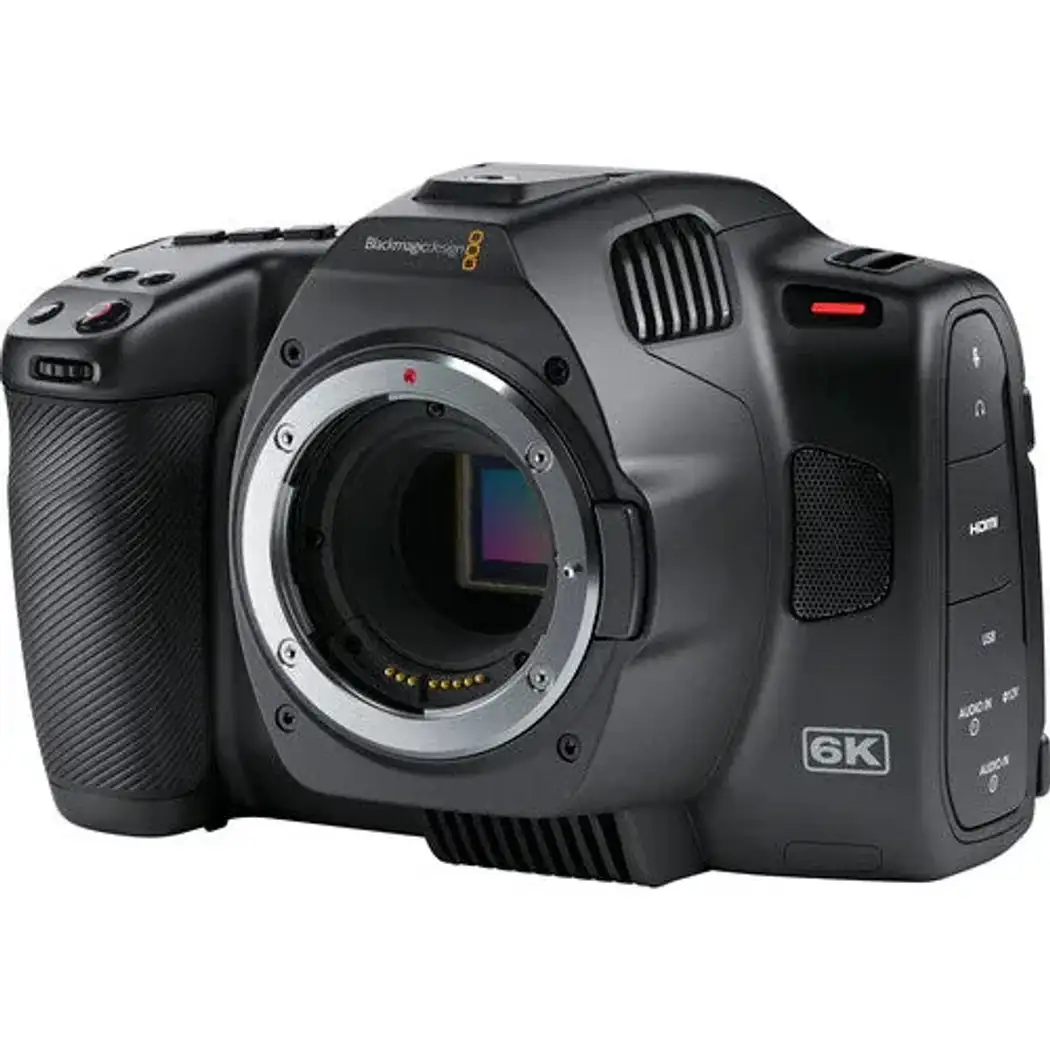

Blackmagic Design Pocket Cinema Camera 6K G2

Blackmagic Design Pocket Cinema Camera 6K G2 Specifications Key Specifications Lens Mount Canon EF Sensor Resolution Effective: 21.2 MP (6144 x 3456) Image Sensor 23.1 x 12.99 mm (Super35) CMOS ISO Sensitivity Range 100 to 25600 Internal Recording Modes ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT DCI 4K (4096 x 2160) up to 60.00 fps UHD 4K (3840 x 2160) up to 60.00 fps 1920 x 1080p up to 120 fps Raw 6144 x 3456 at 23.98/24.00/25/29.97/50 fps [49 to 483 MB/s] 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps [37 to 359 MB/s] 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps [40 to 395 MB/s] 4096 x 2160 at 23.98/24.00/25/29.97 fps [28 to 163 MB/s] 3728 x 3104 at 23.98/24.00/25/29.97 fps [36 to 265 Mb/s] 2868 x 1512 at 23.98/24.00/25/29.97 fps [14 to 101 Mb/s] External Recording Modes 4:2:2 10-bit via HDMI 1920 x 1080 up to 60.00 fps Raw via USB 6144 x 3456 at 23.98/24.00/25/29.97/50 fps 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps Media/Memory Card Slot Slot 1: SD/SDHC/SDXC (UHS-II) Slot 2: CFast Video Input/Output 1x HDMI Output (Unspecified Signal) Mobile App Compatible Yes: iOS Only App Name: BlackMagic Camera Control Functions: Settings Adjustment, Remote Control Battery Type: Sony L Series Shooting Lens Mount Canon EF Contact Lens Yes, with Autofocus Support Sensor Resolution Effective: 21.2 MP (6144 x 3456) Image Sensor 23.1 x 12.99 mm (Super35) CMOS Image Stabilization No Built-in ND Filter No Filter Holder Internal No Capture Type Stills and Video Exposure Control Shutter Type Electronic Rolling Blinds Shutter Type Electronic Rolling Blinds ISO Sensitivity Range 100 to 25600 Shutter Angle 5 to 360° Advised Dynamic Range 13 stops Video Capture Internal Recording Modes ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT DCI 4K (4096 x 2160) up to 60.00 fps UHD 4K (3840 x 2160) up to 60.00 fps 1920 x 1080p up to 120 fps Raw 6144 x 3456 at 23.98/24.00/25/29.97/50 fps [49 to 483 MB/s] 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps [37 to 359 MB/s] 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps [40 to 395 MB/s] 4096 x 2160 at 23.98/24.00/25/29.97 fps [28 to 163 MB/s] 3728 x 3104 at 23.98/24.00/25/29.97 fps [36 to 265 Mb/s] 2868 x 1512 at 23.98/24.00/25/29.97 fps [14 to 101 Mb/s] External Recording Modes 4:2:2 10-bit via HDMI 1920 x 1080 up to 60.00 fps Raw via USB 6144 x 3456 at 23.98/24.00/25/29.97/50 fps 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps Sensor crop during recording 6K (6144 x 2560) at 2.4:1 when recording in Raw 5744 x 3024 when recording in Raw 4K (4096 x 2160) when recording in Raw 3728 x 3104 when recording in Raw 2868 x 1512 when recording in Raw Fast/Slow Motion support Yes Built-in microphone Stereo IP streaming No Interface Media/Memory card slot Slot 1: SD/SDHC/SDXC (UHS-II) Slot 2: CFast Video input and output 1x HDMI output (unspecified signal) Audio input and output 2x In Microphone/Line Mini XLR (Phantom Power +48V) 1 x 1/8" / 3.5mm TRS Stereo Microphone/Line Input 1 x 1/8" / 3.5mm TRS Stereo Headphone Output Power Inputs and Outputs 1 x Weipu SF610/S2 Input (12 to 20V DC) Other Inputs and Outputs 1 x USB-C (USB 3.2 / 3.1 Gen 1) for control/video output 1 x 1/8" / 3.5mm (Time Code) Input (Shared with Microphone/Line Input) Wireless Bluetooth Control Mobile App Compatible Yes: iOS Only App Name: BlackMagic Camera Control Functions: Settings Adjustment, Remote Control GPS Positioning (GPS, GLONASS, etc.) No Screen Display Size 5" Resolution 1920 x 1080 1080 Display Type Tilting Touchscreen LCD Screen Optional, Not Included Focus Focus Type Auto Focus and Manual Focus Environmental Operating Temperature 32 to 104°F / 0 to 40°C Storage Temperature -4 to 113°F / -20 to 45°C Operating Humidity 0 to 90% General Battery Type Sony L Series Shoe Mount No Tripod Mount Thread 2 x 1/4"-20 Female Accessory Mount Thread 1 x 1/4"-20 Construction Material Carbon Fiber and Polycarbonate Dimensions (W x H x D) 7.08 x 4.84 x 4.41 in / 17.98 x 12.29 x 11.2 cm Weight 2.65 lb / 1.20 kg Packaging Information Package Weight 4.345 lb Box Dimensions (L x W x H) 10.5 x 7.25 x 7 inches
