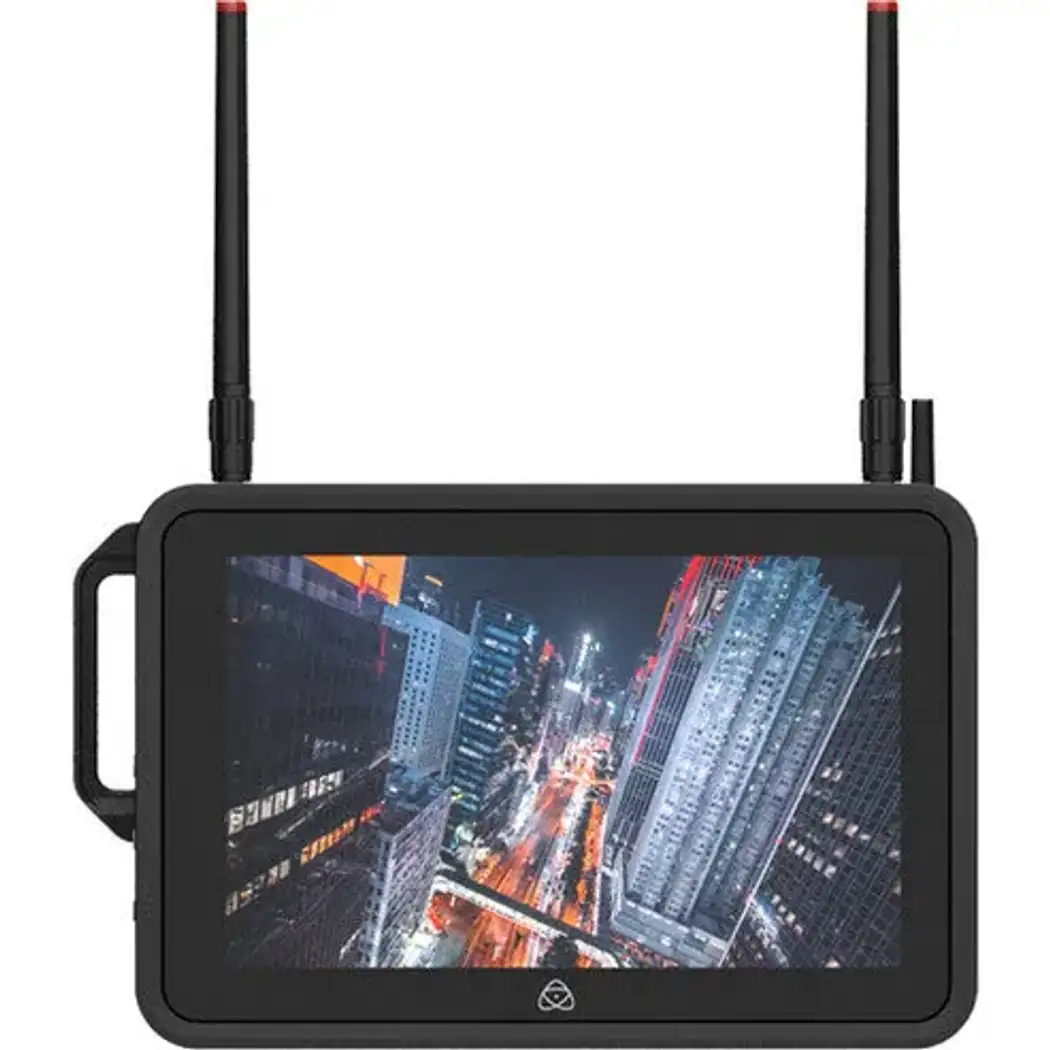

Rental Atomos Shogun CONNECT 7" Network-Connected HDR Video Monitor & Recorder 8Kp30/4Kp120

Atomos Shogun Connect 7 Specifications Key Specifications Display Size 7.0 inches / 17.8 cm Resolution 1920 x 1200 Touch Screen Yes Video Input & Output 1 x HDMI 2.0a In 1 x BNC Input (12G-SDI) 1 x HDMI 2.0a Out 1 x BNC Loop Output (12G-SDI) Embedded Audio HDMI: 8 Channel SDI: 12 Channel Media/Memory Card Slot 1 Slot: SSDmini/SSD with Master Caddy II/III Latency No Video Format HDMI/SDI (8/10 bit 4:2:2/4:2:0 YCC) DCI 4K: 60 UHD 4K: 60 DCI 2K: 60 1080p: 120 1080i: 60/50 720p: 60 HDMI (12-bit 4:2:2/4:2:0 YCC) 8K RAW: 30 6K RAW: 60 4K RAW: 120 3.5K RAW: 60 SDI (12-bit 4:2:2/4:2:0 YCC) 6K RAW: 30 4K RAW: 120 2K RAW: 240 Built-in Battery No Battery Type 1x L Series Mounting 3x 1/4"-20 Female 3x 3/8"-16 Female Display Panel Type IPS LCD Display Size 7.0 inches / 17.8 cm Resolution 1920 x 1080 1200 Aspect Ratio 16:9 Touch Screen Yes Picture Controls De-Squeeze, False Color, Focus, Screen Mirroring, RGB Display, Vectorscope, Waveform, Zebra Inputs/Outputs Antenna Inputs and Outputs 3x F-Type Video Inputs and Outputs 1x HDMI 2.0a Input 1x BNC Input (12G-SDI) 1x HDMI 2.0a Output 1x BNC Loop Output (12G-SDI) Onboard Audio HDMI: 8 Channels SDI: 12 Channels Audio Inputs and Outputs 1x 1/8"/3.5mm Headphone Output 1x 1/8"/3.5mm Microphone/Line Input Power Inputs and Outputs 1x Barrel Input Input and Output Other 1 x 2.5mm (LANC) Port 1 x USB-C (Serial) Port 1 x RJ45 (Gigabit Ethernet) Port Media/Memory Card Slot 1 Slot: SSDmini/SSD with Master Caddy II/III File System Support: exFAT Encryption: No Wireless Wireless Range: 0.2 miles / 300 meters 49.2' / 15 meters (Line of Sight) Number of Channels: 12 Latency: No Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth: Yes Mobile App Compatible: Yes: Android and iOS App Name: AtomRemote Cell Phone Support: No Format Support: Video Format: HDMI/SDI (8/10 bit 4:2:2/4:2:0 YCC) DCI 4K 60 UHD 4K: 60 DCI 2K: 60 1080p: 120 1080i: 60/50 720p: 60 HDMI (12-bit 4:2:2/4:2:0 YCC) 8K RAW: 30 6K RAW: 60 4K RAW: 120 3.5K RAW: 60 SDI (12-bit 4:2:2/4:2:0 YCC) 6K RAW: 30 4K RAW: 120 2K RAW: 240 Audio Format 24-bit 48kHz PCM Audio Time Code Support Yes Power DC Input Power 6.2 to 16.8V DC Built-in Battery No Battery Type 1x Series L Mounting Mounting 3x 1/4"-20 Female 3x 3/8"-16 Female Environmental Environmental Protection No Certifications FCC, IC, UK Operating Temperature 72°F / 40°C General Construction Material Aluminum and Polycarbonate Dimensions 7.8 x 5.2 x 1.6 inches / 198 x 133 x 40 mm Weight 1.6 lb / 730 g Packaging Information Package Weight 3.98 lb Box Dimensions (L x W x H) 10.9 x 7.8 x 4.6 inches
