Rental Chauvet PXL Bar 16

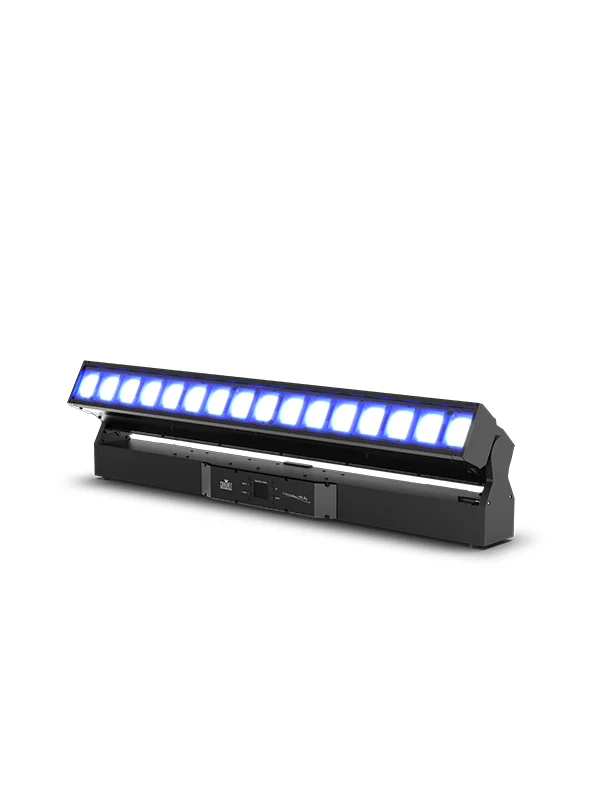

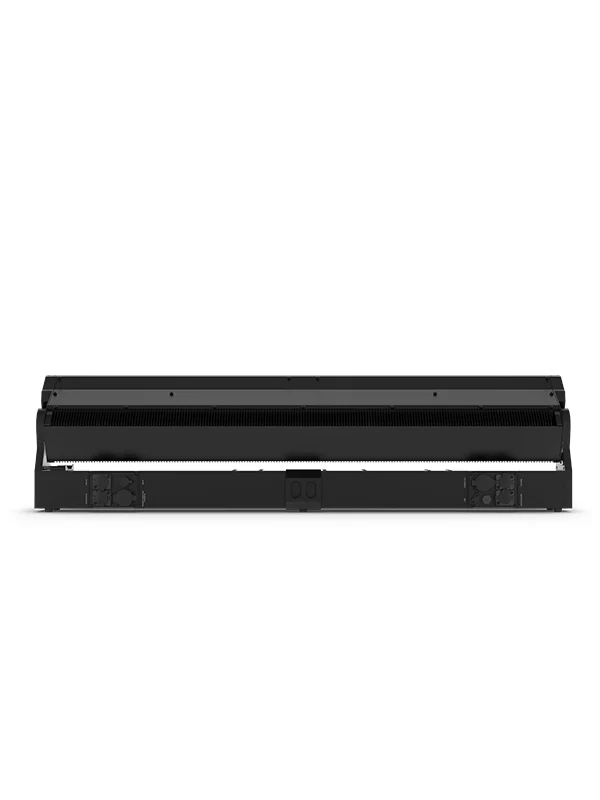

Chauvet COLORado PXL Bar 16 | IP65 Motorized Batten The industry-standard tilting pixel bar for touring, festivals, and broadcast. High-output, weatherproof, and fully pixel-mappable. Core Performance Specs: • Light Source: (16) 45W RGBW LEDs | 8,875K | 8,959 Lumens. • Output: 27,415 lux @ 5m (5.7°). • Motion: 200° Motorized Tilt (Quick & Quiet). • Optical Range: 5.8° to 47.9° Motorized Zoom (Beam to Wash). • Broadcast Ready: Selectable PWM up to 15,000 Hz (100% Flicker-free for 4K/8K film). Control & Integration: • Protocols: DMX, sACN, Art-Net, Kling-Net, and RDM. • Pixel Mapping: 186 channels in full mode (Individual cell control). • Built-in FX: Virtual gobos and movement macros with foreground/background color control. • Edge-to-Edge: Zero-gap pixel pitch when units are joined. Physical & Logistics: • Weather Rating: IP65 (Temporary outdoor/wet use) with M12 GORE pressure valve. • Dimensions: 1000 x 139 x 273 mm (1 Meter Bar). • Weight: 20.7 kg (45.6 lbs) per unit. • Power: 790W draw. Max Power Link: 3 units @ 230V. • Connectors: Seetronic Powerkon IP65 In/Out | 5-pin DMX & RJ45 In/Out.
