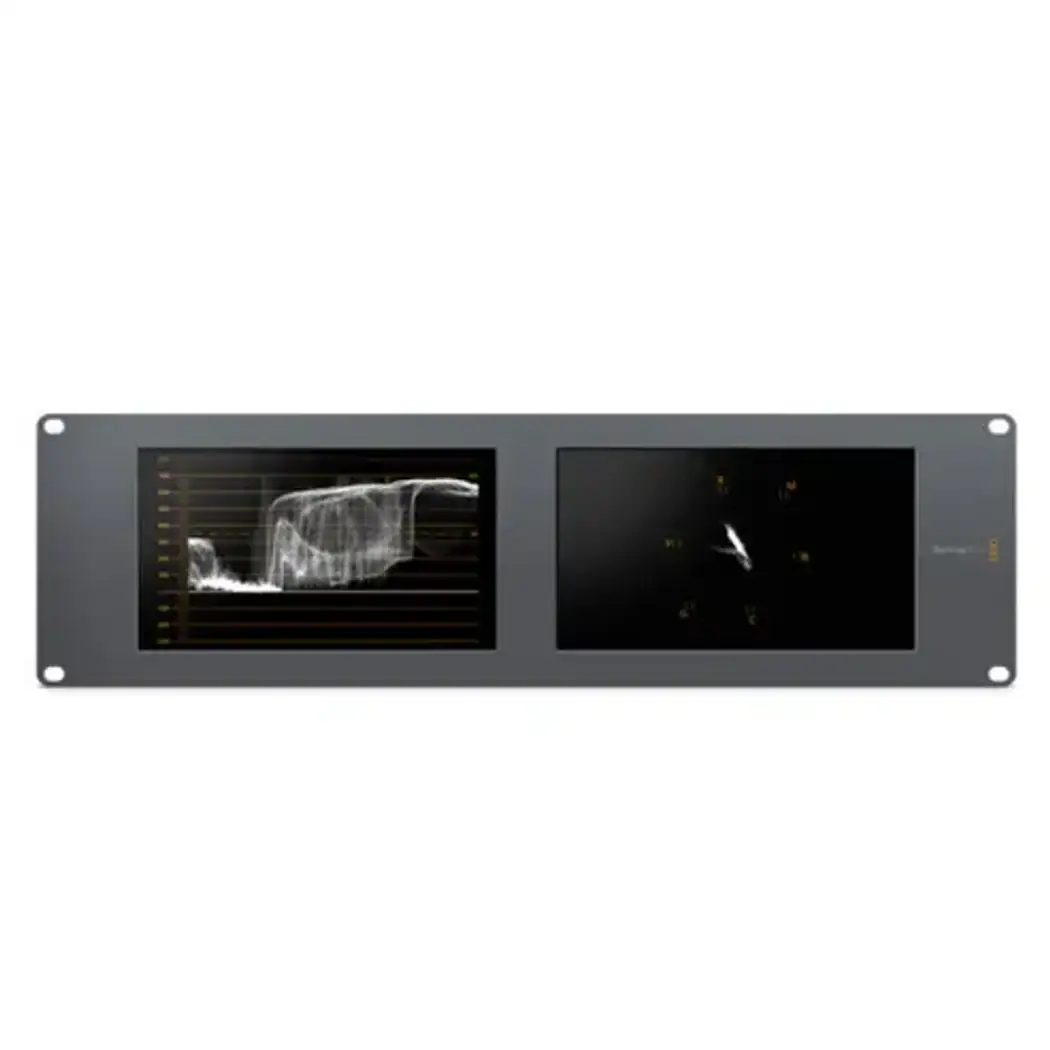

SmartScope Duo 4K

The SmartScope Duo 4K looks like the SmartView Duo but adds independent waveform monitoring so you can choose between waveform, vectorscope, RGB parade, YUV parade, histogram, and audio phase level displays. Each display is independent so it can display any combination of the range or image display! Connections SDI Video Input Automatically switches between SD, HD, and 6G-SDI. Loop-through playback is available. SDI Video Output 1 x 10-bit loop-through SD, HD, and 6G-SDI switchable. SDI Audio Input 16-channel onboard SD, HD, and UHD. SDI Audio Output 16-channel onboard SD, HD, and UHD. Multi-rate support Standard Definition SDI, High Definition SDI, and 6G-SDI Next 9-pin D-type connector Standards SD format support 525i29.97 NTSC, 625i50 PAL HD format support 720p, 50, 59.94, 60 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF 23.98, 24, 25, 29.97, 30 1080i50, 59.94, 60 2K format support 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Support Ultra HD Format 2160p 23.98, 24, 25, 29.97, 30 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B, and SMPTE 425M. Audio Sampling TV Sampling Rate 48 kHz Video Sampling 4:2:2 and 4:4:4 Color Resolution 8-bit Color Space YUV and RGB PC Interface USB 2.0 for software updates and Ethernet for configuration Color Space Conversion Real-Time Hardware Dependent
